How to Design a Safe and Profitable Commercial Gym Floor Plan

A commercial gym floor plan must account for member capacity, safe walking zones, equipment footprints, flooring specifications, and revenue-generating layout priorities. Key standards to follow:

• Allocate a minimum of 4 to 5 square metres per person in open workout areas

• Maintain 1.2 metre minimum clearance on main thoroughfares

• Maintain 0.9 metre minimum clearance between static machines

• Place squat racks and deadlift platforms in reinforced corners with 2.4m+ ceiling clearance

• Use 30 to 40mm high-impact rubber tiles in free weight zones; 15mm in cardio and selectorised zones

• Design a dedicated 10 to 15 metre turf strip for functional training to prevent intersection with lifting avenues

A commercial gym floor plan is the tactical blueprint for how your facility generates revenue, retains members and prevents accidents. It determines how your space performs at 6pm on a Tuesday, not just how it photographs at 9am on a Wednesday.

When you design a commercial space, the layout governs traffic flow during peak trading hours. Members who cannot move safely between machines, or who get bottlenecked near the dumbbell racks, will leave for a facility that respects their training time. Designing a floor plan that balances high-density training with open, safe transit zones is what separates a premium long-term business from a crowded warehouse.

At Arrow Fitness, we have designed and fitted out commercial gym spaces across Australia for over 20 years. This is our complete framework for mapping a commercial gym floor plan that works.

What this guide covers

• Understanding your facility type and layout priorities

• The mathematics of facility capacity

• Safe walking zones and spacing standards

• Placing heavy lifting and strength zones correctly

• Integrating functional training and turf spaces

• Selecting the correct flooring specification per zone

• Capital planning for your floor plan investment

• The 5 most common commercial gym layout mistakes

• Seeing your layout in 3D before you commit

• Frequently asked questions

Start here: design principles differ by facility type

Not every commercial gym floor plan follows the same rules. A boutique PT studio serving 20 clients per day has fundamentally different layout priorities to a 24/7 independent gym servicing 400 members. Before mapping a single zone, confirm which facility type you are designing for.

The design principles in this guide apply across all facility types. The weighting and priorities you apply to each section, however, will shift depending on the above. A corporate facility might treat sightlines and accessibility as the primary constraint. A performance facility might treat ceiling height and flooring load rating as non-negotiable starting points.

The mathematics of facility capacity

Before selecting a single piece of equipment, you need to understand the physical and legal limits of your space. Overcrowding a commercial gym increases injury risk, voids equipment warranties and drives member churn.

Industry benchmarks from organisations like AUSactive (ausactive.org.au) suggest allocating at least 4 to 5 square metres per person for open uninstructed workout areas. That is the baseline. You also need to account for the dynamic footprint of each piece of equipment. A commercial functional trainer requires a specific operating envelope around its cable travel paths. Power racks require clearance for barbell loading, active movement and spotting.

Apply this calculation before finalising your equipment list:

• Total usable floor area (excluding bathrooms, reception, and storage)

• Minus fixed equipment footprints at full operational envelope

• Minus safe walking zone allocations between all equipment clusters

• Minus fire egress paths and emergency exit clearances

• The remaining figure is your usable active floor space per member at peak capacity

If this number drops below 3 square metres per person at your projected peak attendance, your layout needs revision before you order equipment.

Safe walking zones and commercial spacing standards

Safe walking zones are not an optional feature of a commercial gym floor plan. They are a liability management requirement and, more practically, a direct driver of member satisfaction during peak hours.

Apply these minimum clearance standards across your layout:

If members have to step over benches or sidestep around equipment mid-set, you are designing a liability rather than a business asset. Every transit path should allow two members to pass without disrupting someone who is actively training.

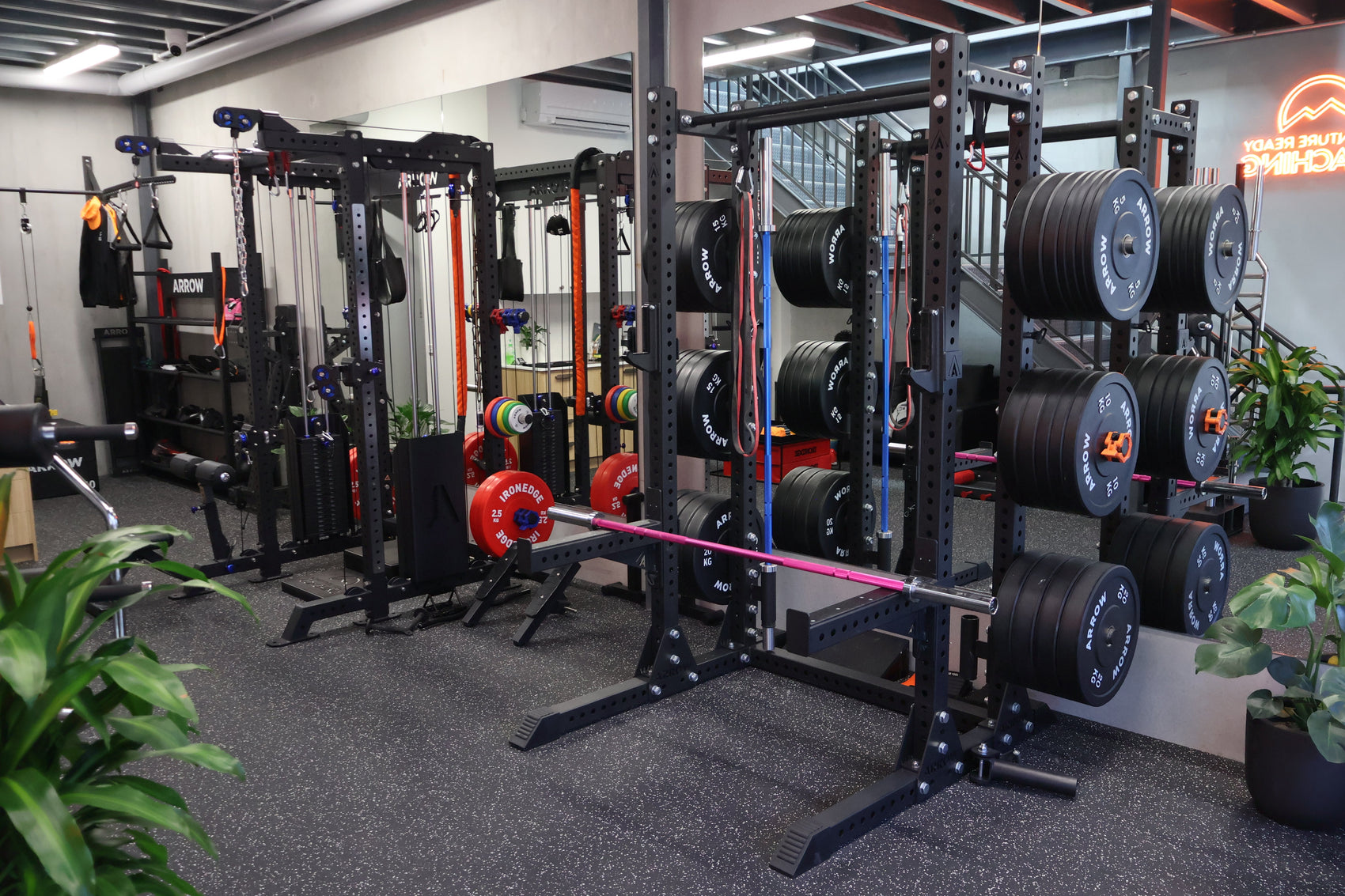

Placing heavy lifting and strength zones safely

The back or reinforced corners of your facility belong to your heavy lifters. This is where noise, chalk and heavy equipment drops happen. It requires the most structural planning of any zone in the building.

Squat rack spacing and power rack placement

Squat rack spacing is one of the most commonly underspecified elements of commercial gym layouts. Each rack needs the following:

• 1.5 metres of clearance from the nearest obstacle on the loading side (for full barbell width plus controlled removal)

• 2 metres of clearance behind for a spotter to operate safely

• 1.2 metres minimum clearance in front for safe barbell re-rack and egress

• Racking positioned away from any main transit paths so a failed lift does not create a hazard for passing members

In high-volume commercial environments, spacing racks at 2 to 2.5 metres centre-to-centre is the recommended standard. Do not compress this to fit more racks. The injury risk and member conflict that follows is not worth the additional unit on the floor.

Deadlift platforms and ceiling height

Deadlift platforms belong against walls or in reinforced corners, not in the centre of the floor. Centralised placement puts them directly in transit paths and creates acoustic and vibration issues across the entire slab.

Ceiling height is one of the most frequently overlooked structural constraints in strength zone planning. A commercial power rack or rig can exceed 2.4 metres in height. Once you factor in pull-ups, muscle-ups or barbell overhead press, you need significantly more overhead clearance. Always measure to the lowest hanging obstacle, including air conditioning ducts, lighting fixtures and fire suppression infrastructure, before confirming your strength layout.

Storage adjacency

Bumper plates, dumbbells and barbells must be stored immediately adjacent to their use zones. If a member has to carry a 25kg plate across a transit path to reach their rack, your floor plan has failed a basic commercial logic test. Vertical plate storage and integrated rack storage should be specified at the layout stage, not added after installation.

Integrating functional training and turf spaces

Functional training has shifted from a niche offering to a core requirement for any modern commercial facility. The design challenge is that functional training is inherently dynamic. Sled pushes, battle ropes, walking lunges and plyometric movements require horizontal runway space that, if unplanned, will constantly intersect with the primary lifting avenues.

The solution is centralisation and physical demarcation. A dedicated turf track creates a natural boundary for dynamic movements. By running a 10 to 15 metre turf strip down the side or centre of your floor plan, you give members a safe runway that is visually and physically separated from the lifting zones.

Design principles for functional training zones:

• Position the turf strip so neither end opens directly onto a weight rack or machine cluster

• Store all functional accessories, including kettlebells, battle ropes and plyo boxes, on designated commercial shelving at the edge of the turf

• Ensure the turf zone is accessible from the main floor without requiring members to cross heavy lifting areas

• Allow sufficient overhead clearance for jumping and throwing movements across the full length of the strip

Selecting the correct flooring specification per zone

A commercial gym floor plan is completely dependent on the foundation beneath it. Applying a single flooring solution across the entire facility is one of the most expensive mistakes a facility operator can make.

The consequence of underspecifying flooring in a heavy lift zone is not just aesthetic. A 20kg bumper plate dropped from shoulder height will easily punch through 15mm rubber and damage the concrete below. Repairing a slab under an operational gym floor is a significant cost and a major disruption. Getting the specification right at layout stage is always cheaper than correcting it after the fact.

A professional fit-out partner will specify flooring density as part of the floor plan design process, not as an afterthought after equipment placement is confirmed. If your supplier is not asking about load profiles per zone before recommending flooring, ask them why not.

Capital planning for your commercial floor plan  investment

Fitting out a commercial space with precision-engineered equipment is a significant upfront capital commitment. The temptation to reduce equipment quality or compress zone spacing to hit a budget ceiling will cost far more in maintenance, downtime and member churn over the life of the facility.

There are two strategic levers for managing the capital side of a floor plan build:

Phase the build correctly. Design the full floor plan first, then identify which zones generate the most immediate revenue and prioritise those in phase one. A 24/7 gym can open profitably with a well-specified cardio and strength zone while a functional training or recovery zone is added in phase two. The important principle is that the floor plan is designed at full specification from day one, so phase two does not require pulling up flooring or repositioning electrical.

Use equipment financing to preserve operating capital. Many facility operators use commercial gym equipment financing to spread the capital investment without compromising on equipment specification. This allows you to launch with a complete, commercial-grade floor plan without draining your operating cash reserves on day one.

The equipment generates the revenue required to service the financing, rather than requiring the full capital outlay before a single member walks through the door. Arrow Fitness offers financing options for commercial fit-outs. Raise it at quote stage and we will structure the options for your facility. Learn more

The 5 most common commercial gym layout mistakes

Based on two decades of designing and fitting out commercial facilities across Australia, these are the layout mistakes that come up most consistently, and cost the most to fix after installation.

See your gym layout in 3D before you commit

A professional commercial gym fit out should never require you to guess whether a layout will work, whether a rig will fit, or whether your peak-hour traffic flow will create a bottleneck. These are questions that should be answered on screen, before any capital changes hands.

Arrow Fitness maps every commercial gym floor plan in 3D before a single item is specified. The process works as follows:

The 3D design stage is where the commercial logic of your floor plan is validated. Safe walking zones, equipment clearances, electrical load requirements and revenue-generating area priorities are all confirmed before anything is ordered. You see the facility before it is built.

This is part of every Arrow Fitness commercial fit-out engagement, not an optional add-on.

For more on what a full commercial fit-out with Arrow looks like, visit Arrowfitness

Frequently asked questions

How many square metres per person does a commercial gym need?

Industry guidance from AUSactive recommends a minimum of 4 to 5 square metres per person in open uninstructed workout areas. In practice, most commercial operators design for 6 to 8 square metres per member at peak capacity to allow for equipment footprints, safe walking zones and egress paths.

What is the correct spacing between squat racks in a commercial gym?

In commercial environments, a minimum of 1.5 metres of clearance on all active sides of each rack is the standard, with 2 metres preferred around the loading and spotter positions. Rack-to-rack centre spacing of 2 to 2.5 metres is the recommended standard for high-volume facilities. Compressing this spacing to fit more units is a common layout mistake with direct injury risk consequences.

What flooring do I need under free weights and power racks?

Heavy lift zones require a minimum of 30 to 40mm high-impact acoustic rubber tiles, typically laid over a shock-absorbent underlay. Standard 15mm commercial rubber roll is not rated for repeated barbell drops and will damage the concrete slab below. The flooring specification for each zone should be confirmed as part of the floor plan design process, before equipment placement is finalised.

Should functional training zones be separated from the main gym floor?

Yes. Dynamic movements including sled pushes, battle ropes, plyometrics and walking lunges require dedicated runway space. A 10 to 15 metre turf strip, physically and visually demarcated from lifting zones, is the standard approach. Scattering functional equipment throughout the gym creates trip hazards and creates constant intersection with members who are mid-lift.

Can I design the floor plan myself before getting a supplier quote?

You can produce a preliminary zone plan to establish your space requirements and prioritise zones. However, the final floor plan should be confirmed with a commercial fit-out specialist before equipment is ordered. Dynamic equipment footprints, flooring load ratings, electrical load requirements and ceiling height constraints are technical inputs that materially affect the viability of a layout. Arrow Fitness provides 3D floor plan design as part of the commercial fit-out process at no separate charge.

How do I link my floor plan to revenue generation?

The front 30 percent of your facility is your first impression and the zone where accessible, high-turnover equipment should sit. Cardio machines here drive visible activity and signal a well-run facility. The middle zones should prioritise your most-used strength equipment and keep transit paths clear. The back or corners are where your heavy lifters belong, physically separated from the primary flow. Functional training zones work best as a defined side strip. Revenue per square metre is maximised when each zone serves a specific purpose and members can access it without disrupting other zones.
